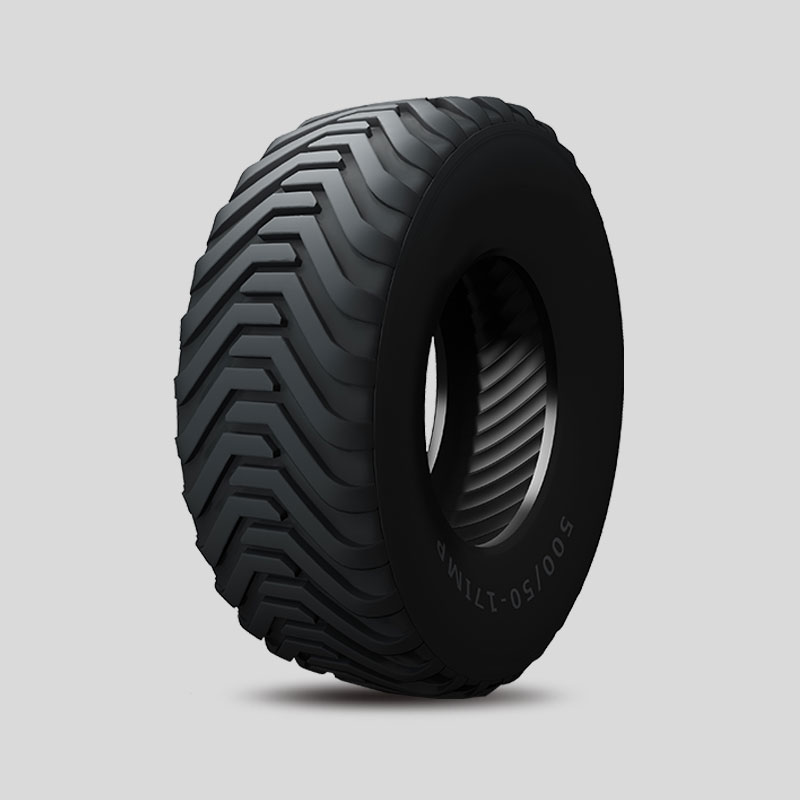

Qingdao Oxplo Tire, is a company with over 20 years of tyres manufacturer. The I-3C Implement Driving and Driven Wheel Tire is a premium agricultural tire designed to meet the rigorous demands of modern farming equipment. Its advanced features and robust construction ensure optimal performance, durability, and safety in various field conditions.
| MODEL | TIRE SPECIFICATION | LOAD INDEX | SPEED | TIRE TYPE |
SECTION WIDTH (MM) |
OUTER DIAMETER (MM) |
MAXIMUM SPEED (MM) |
INFLATION PRESSURE (KPA) |
MAXIMUM LOAD (KG) |
DESIGN RIM WIDTH |
PATTERN DEPTH (MM) |
| I-3C | 400/60-15.5 | 14 | A8 | TL | 404 | 874 | 40 | 360 | *3250/**2000 | AG13.00 | 20.00 |
| 400/60-15.5 | 16 | A8 | TL | 404 | 874 | 40 | 400 | *2900/**2240 | AG13.00 | 20.00 | |
| 400/55-22.5 | 20 | A8 | TL | 404 | 1012 | 40 | 550 | *4250/**3000 | AG13.00 | 25.50 | |
| 400/55-22.5 | 16 | A8 | TL | 404 | 1012 | 40 | 320 | *3075/**2180 | AG13.00 | 25.50 | |
| 500/60-22.5 | 16 | A8 | TL | 503 | 1173 | 40 | 500 | *6000/x*4250 | 16.00DC | 26.00 | |
| 550/60-22.5 | 16 | A8 | TL | 537 | 1254 | 40 | 300 | *5300/**3750 | 16.00DC | 25.00 | |
| 600/55-22.5 | 16 | A8 | TL | 611 | 1232 | 40 | 280 | 5600/**4000 | 20.00DC | 26.00 | |
| 600/50-22.5 | 16 | A8 | TL | 611 | 1172 | 40 | 320 | *5600/**4000 | AG20.00 | 26.00 | |
| 600/55-26.5 | 16 | A8 | TL | 611 | 1333 | 40 | 240 | *5300/**3750 | AG20.00 | 26.00 | |
| 700/50-22.5 | 12 | A8 | TL | 700 | 1270 | 40 | 220 | *5600/**4000 | 24.00DC | 27.00 | |
| 700/50-22.5 | 16 | A8 | TL | 700 | 1270 | 40 | 280 | *6700/**4750 | 24.00DC | 27.00 | |
| 500/45-22.5 | 16 | A8 | TL | 503 | 1022 | 40 | 280 | *3350/**2360 | AG16.00 | 25.50 | |
| 700/50-26.5 | 16 | A8 | TL | 710 | 1333 | 40 | 240 | *5800/**4125 | AG24.00 | 26.00 |
• Size Range: Available in various sizes to fit different agricultural implements and machinery.
• Load Capacity: High load-bearing capacity, suitable for heavy-duty agricultural applications.
• Speed Rating: Meets or exceeds industry standards for speed ratings.
• Certifications: ISO, DOT, CCC, ECE (as per the information provided in the reference articles).
1. High-Quality Materials: Manufactured using high-grade rubber compounds, the I-3C Implement Driving and Driven Wheel Tire is built to last. It can withstand the heavy loads and abrasion associated with agricultural work.
2. Optimal Traction: The unique tread pattern of the I-3C Implement Driving and Driven Wheel Tire provides excellent traction on both wet and dry surfaces. This ensures stable operation and reduced soil compaction.
3. Durable Construction: The tire's reinforced sidewall and robust belt structure ensure maximum durability and resistance to punctures and tears.
4. Versatile Applications: Suitable for both driving and driven wheels, the I-3C Implement Driving and Driven Wheel Tire can be used on a wide range of agricultural implements and machinery.
5. Easy Maintenance: The tire's design allows for easy removal and installation, minimizing downtime and maintenance costs.
• Enhanced Safety: The excellent traction and stability provided by the I-3C Implement Tire reduce the risk of accidents and ensure safer operation.
• Long-Lasting Performance: The durable construction and high-quality materials ensure that the tire can withstand frequent use and heavy loads, providing long-lasting performance.
• Versatility: The tire's suitability for both driving and driven wheels makes it a versatile choice for various agricultural implements and machinery.
• Cost-Effectiveness: The easy maintenance and durability of the I-3C Implement Driving and Driven Wheel Tire reduce overall operating costs.
We provide comprehensive customer support, including product inquiries, technical assistance, and after-sales service. Our team of experts is always ready to assist you with any questions or concerns you may have about the I-3C Implement Driving and Driven Wheel Tire.
Please note that the specifications and benefits mentioned above may vary depending on the specific model and application. For more detailed information, please consult our product catalog or contact us directly.
