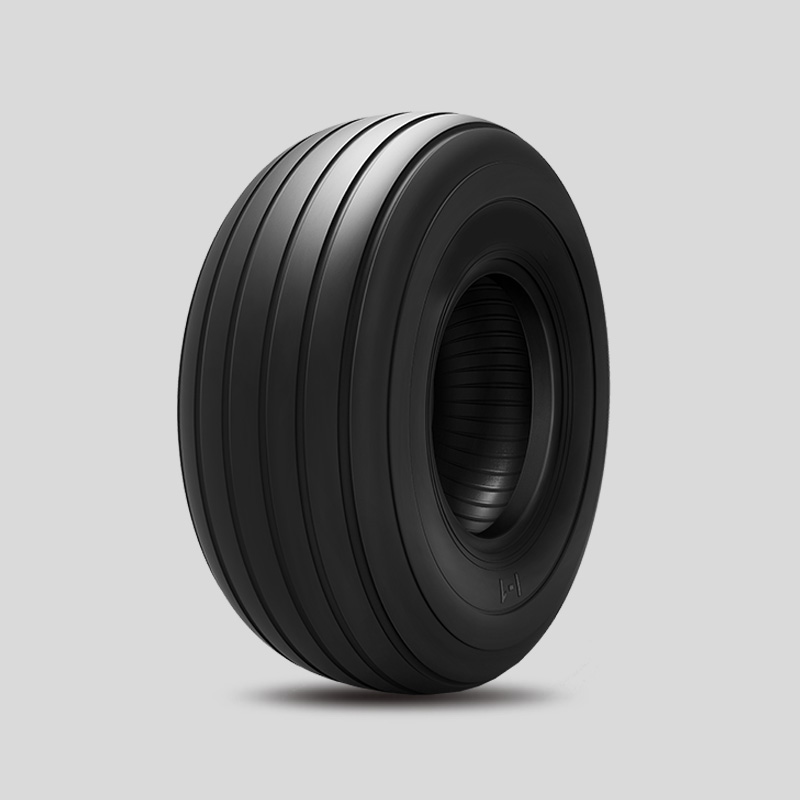

Qingdao Oxplo Tire is a China's I-1 Implement Guide and Support Wheels supplier.The I-1 Implement Guide and Support Wheels Tire is a specialized tire designed to provide stability, durability, and performance for agricultural implements and machinery. This tire is specifically engineered to meet the demands of heavy-duty applications, ensuring smooth operation and extended service life.
● Size: Available in various sizes to fit different implements and machinery.
● Material: High-quality, reinforced construction materials for durability and performance.
● Tread Design: Optimized for traction and stability on various terrains.
● Weight Capacity: Designed to support heavy-duty applications.
| MODEL | TIRE SPECIFICATION | LOAD INDEX | SPEED | TIRE TYPE |
SECTION WIDTH (MM) |
OUTER DIAMETER (MM) |
MAXIMUM SPEED (MM) |
INFLATION PRESSURE (KPA) |
MAXIMUM LOAD (KG) |
DESIGN RIM WIDTH |
PATTERN DEPTH (MM) |
| I-1 | 8.5L-14 | 6 | B | TT | 216 | 721 | 50 | 250 | 850 | 6.00 | 6.00 |
| 9.5L-14 | 8 | B | TT | 241 | 741 | 50 | 300 | 1090 | 7.00 | 6.50 | |
| 11L-14 | 6 | B | TT | 279 | 752 | 50 | 190 | 925 | 8.00 | 6.50 | |
| 5.70-15 | 6 | B | TT | 150 | 652 | 50 | 330 | 675 | 4.50 | 6.50 | |
| 5.90-15 | 4 | B | TT | 380 | 155 | 50 | 250 | 515 | 4.50 | 6.00 | |
| 6.70-15 | 6 | B | TT | 380 | 170 | 50 | 300 | 730 | 4.50 | 6.00 | |
| 7.60-15 | 8 | B | TT | 380 | 193 | 50 | 360 | 950 | 5.50 | 6.00 | |
| 7.60-15 | 8 | B | TT | 378 | 193 | 50 | 360 | 950 | 5.50 | 6.00 | |
| 9.5L-15 | 8 | B | TT | 241 | 767 | 50 | 300 | 1120 | 7.00 | 6.50 | |
| 9.5L-15 | 12 | B | TT | 241 | 767 | 50 | 440 | 1450 | 7.00 | 6.50 | |
| 27x9.50-15 | 8 | B | TT | 229 | 686 | 50 | 410 | 850 | 7.00 | 9.50 | |
| 10.00-15 | 8 | B | TT | 274 | 853 | 50 | 280 | 1450 | 8.00 | 8.50 | |
| 11L-15 | 8 | B | TT | 279 | 777 | 50 | 250 | 1150 | 8.00 | 6.50 | |
| 11L-15 | 10 | B | TT | 279 | 777 | 50 | 300 | 1320 | 8.00 | 6.50 | |
| 11L-15 | 12 | B | TT | 279 | 777 | 50 | 360 | 1450 | 8.00 | 6.50 | |
| 12.5L-15 | 8 | B | TT | 318 | 823 | 50 | 300 | 1360 | 10.00 | 7.00 | |
| 12.5L-15 | 10 | B | TT | 318 | 823 | 50 | 300 | 1550 | 10.00 | 7.00 | |
| 12.5L-15 | 12 | B | TT | 318 | 823 | 50 | 360 | 1750 | 10.00 | 7.00 | |
| 6.00-16 | 6 | B | TT | 159 | 712 | 50 | 300 | 690 | 4.00 | 0.50 | |
| 11L-16 | 8 | B | TT | 279 | 803 | 50 | 250 | 1215 | 8.00 | 6.50 | |
| 12.5L-16 | 10 | B | TT | 318 | 848 | 50 | 300 | 1600 | 10.00 | 7.00 | |
| 12.5L-16 | 12 | B | TT | 318 | 848 | 50 | 360 | 1800 | 10.00 | 7.00 | |
| 14L-16.1 | 8 | B | TL | 356 | 940 | 50 | 220 | 1750 | 11.00 | 9.50 | |
| 14L-16.1 | 12 | B | TL | 356 | 940 | 50 | 300 | 2120 | 11.00 | 9.50 | |
| 16.5L-16.1 | 10 | B | TL | 419 | 1024 | 50 | 180 | 2360 | 14.00 | 12.00 | |
| 16.5L-16.1 | 14 | B | TL | 419 | 1024 | 50 | 250 | 2900 | 14.00 | 12.00 | |
| 9.5L-15F1 | 10 | J | TL | 241 | 767 | 100 | 520 | 1400 | 7.00 | 6.50 | |
| 11L-15FI | 12 | J | TL | 279 | 777 | 100 | 620 | 1550 | 8.00 | 6.50 | |
| 12.5L-15FI | 12 | J | TL | 318 | 823 | 100 | 620 | 2120 | 10.00 | 7.00 | |
| 14L-16.1FI | 8 | J | TL | 356 | 940 | 100 | 310 | 1950 | 11.00 | 9.50 | |
| 16.5L-16.1FI | 8 | J | TL | 419 | 1024 | 100 | 310 | 2500 | 14.00 | 12.00 |
1. Enhanced Durability: Constructed from high-quality materials, the I-1 Implement Guide and Support Wheels are built to last. Its reinforced structure and durable tread pattern provide exceptional resistance to wear and tear, ensuring reliable performance even in the most challenging conditions.
2. Optimal Traction: I-1 Implement Guide and Support Wheels' tread design offers excellent traction, ensuring stable and safe operation on various terrains. Whether working in fields, slopes, or uneven ground, the I-1 Implement Guide and Support Wheels provide the necessary grip to keep your implement or machinery firmly planted.
3. Support Wheels: As a support wheel tire, the I-1 is designed to provide additional stability and support for implements and machinery. Its large footprint and sturdy construction help distribute weight evenly, reducing stress on the machine and improving overall performance.
4. Versatile Applications: Suitable for a wide range of agricultural implements and machinery, the I-1 tire is a versatile choice for farmers and agricultural professionals. Whether you're operating a tractor, planter, or other implement, this tire is designed to meet your needs.
The I-1 Implement Guide and Support Wheels Tire is a reliable and durable choice for agricultural implements and machinery. Its enhanced durability, optimal traction, support wheel design, and versatile applications make it a valuable addition to any farmer's or agricultural professional's toolbox. Whether you're looking for improved stability, traction, or overall performance, the I-1 tire is a smart investment.
